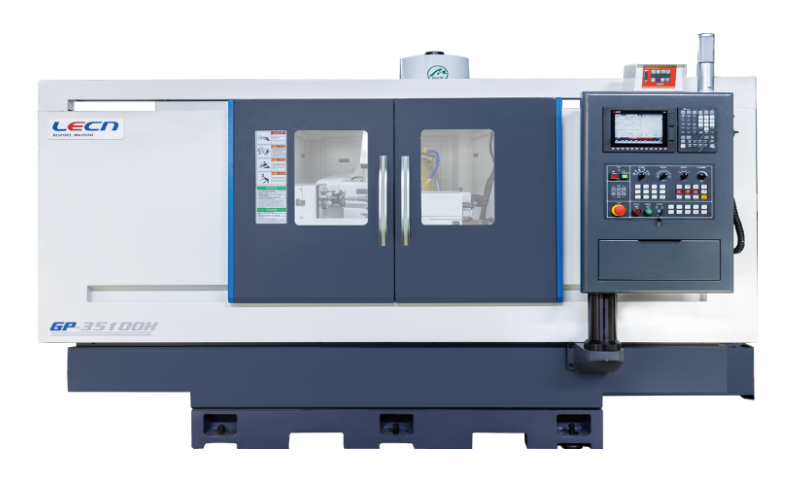

Provide a complete solution for cylindrical and end face grinding of shaft and disc parts, it can carry with truss or joint robot and automatical line. Welcome to contact custom grinder.
Advantage

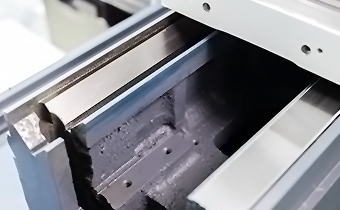

Z-axis V-flat integral quench guide
The sliding surface of the worktable is made of pasting plastic and precise craping,smooth, wear-resistant, vibration-resistan.

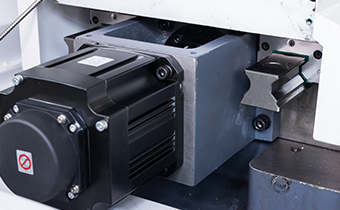

X-axis p-class roller track
Accurate guidance, strong bearing capacity of overturning torque, high positioning accuracy, high speed, long life.

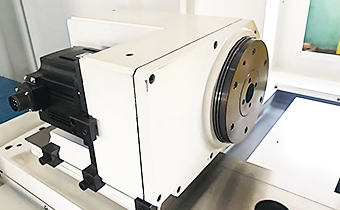

Headstock
Spindle optional, servo motor drive, P4 bearing, variable speed, high precision, strong rigidity, suitable for heavy cutting.

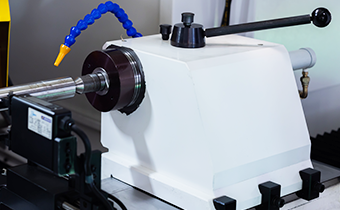

Manual or hydraulic automatic tailstock (optional)
The Knob Spring adjusts the clamping force of the workpiece. Manual or oil pressure automatic lifting is optional.

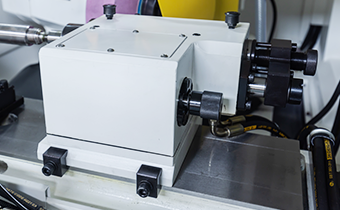

Center high fine-tuning oil pressure automatic tailstock (optional)
Manual knob adjusts the tail seat center high, knob spring adjusts the workpiece clamping force, oil pressure automatic clamping.

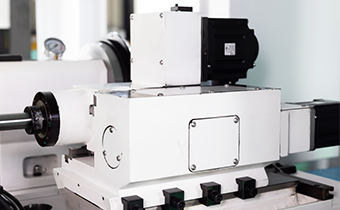

Servo spindle automatic tailstock (optional)
Servo Drive, C3 Screw Drive, p-class rail guidance, torque control automatic top-up.

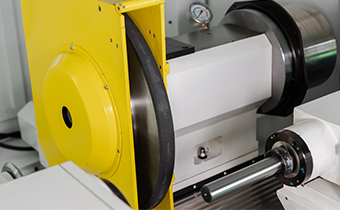

Electrostatic spindle
Radial hydrostatic bearing support, external electric spindle direct drive, high precision, high stiffness, high speed.

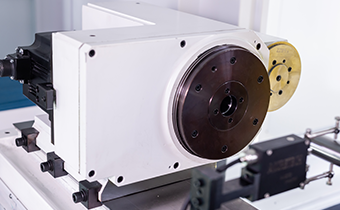

Diamond roller trimming
Servo motor drive, P4 bearing support, high precision, high efficiency.

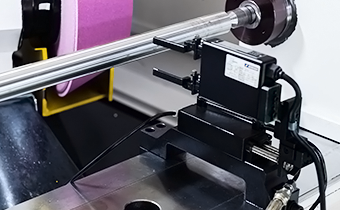

Measuring device (optional)
End face and outside diameter isometers are optional according to the grinding requirements of the workpiece.

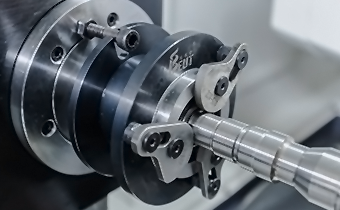

Workpiece drive device (optional)
Automatic tractor, driving ring, Chuck, etc. . According to the workpiece grinding requirements optional.

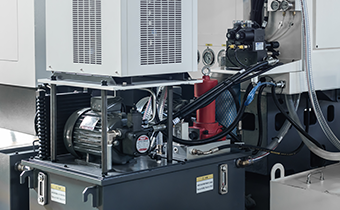

hydraulic system
Constant temperature cooling, barrel filter, accumulator pressure maintenance, check pressure and spindle interlock.

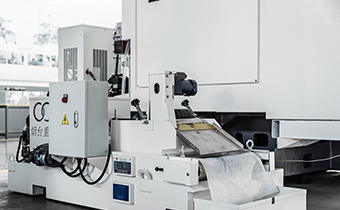

Cooling filter
Powerful magnetic separator paper bag filtration system, to achieve cutting fluid precision filtration.

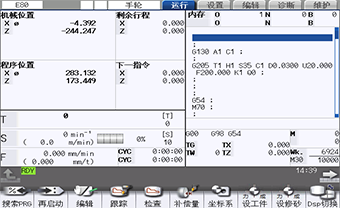

Human-computer dialogue interface-main interface
Simple and quick, easy to operate.

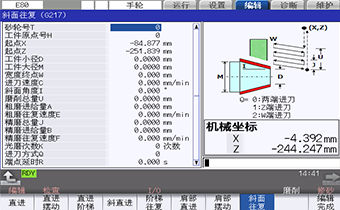

Human-computer dialogue interface-grinding type
Simple and quick, easy to operate.

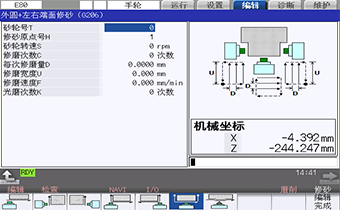

Human-computer dialogue interface-dressing type
Simple and quick, easy to operate.

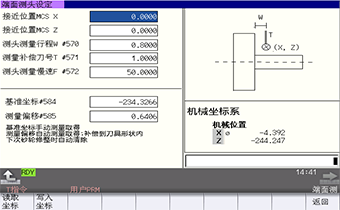

Human-computer dialogue interface-measuring instrument
Simple and quick, easy to operate.
Technical Parameters
| ITEM | GP35100H (CBN oblique) |
| Max Processing Diameter, mm | Ø350 |
| Max Processing Length, mm | 1000 |
| Max Loading, kg | 80 |
| Max Spindle Rotate Diameter, mm | Ø260 |
| Spindle Motor Power,kw | 22 |
| Max Grinding Wheel,mm | Ø600xØ180x50 |
