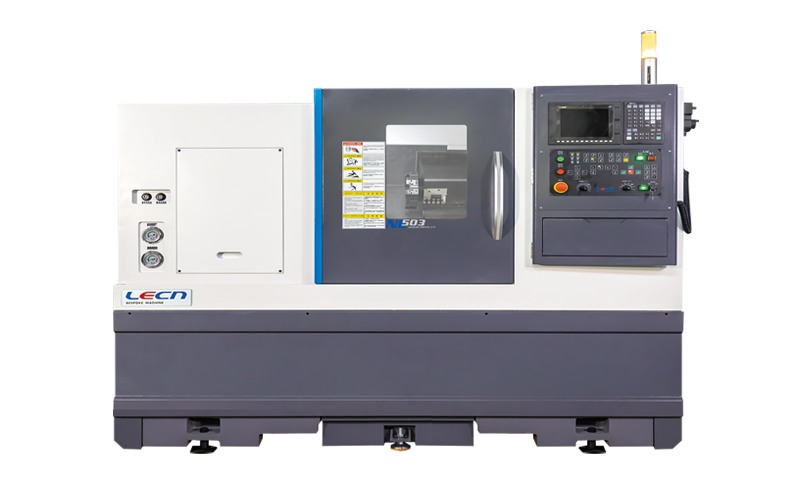

The full function lathe with our many years design experience, is more suitable for production line. High precision, front and back hand options, it can carry with truss or joint robot and automatical line.
Advantage

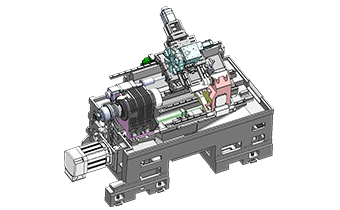

Stepped integral fuselage
High and low flat , long span guide rail, 30 degrees sliding saddle, strong rigidity, tight structure, easy chip removal.

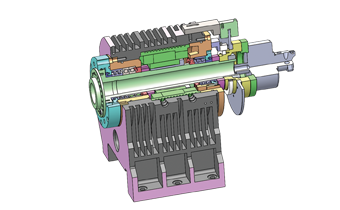

Built-in electric spindle (optional)
Built-in high-speed motor direct-drive, P4 bearing, hydraulic brake, compact structure, high speed,precisionand rigidity.

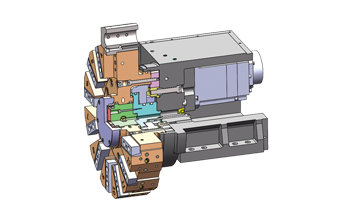

High pressure servo turret (optional)
Three-piece gear plate, servo drive, hydraulic lock, high precision and speed, water pressure up to 70kg.

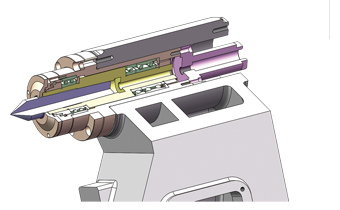

Spindle type tailstock (optional)
P4 bearing, MT4 top, labyrinth mechanical seal, long life, high processing cylindricity.

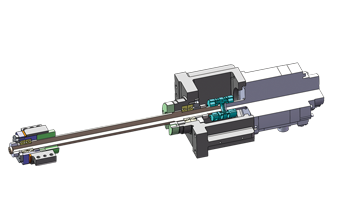

Pre-stretching of screw rod
C3 double-nut Screw, precision screw special bearings, transmission stability, thermal expansion after the accuracy of good retention.

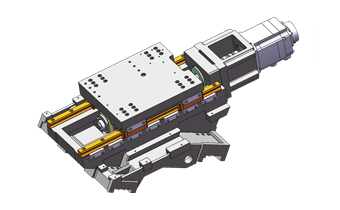

Rapid displacement
P-class ball track, precision screw drive, fast moving 24m/min.
Technical Parameters
| ITEM | NL503 |
| Max Body Rotate Diameter, mm | Ø500 |
| Max Turning Diameter, mm | Ø360 |
| Max Turning Length, mm | 800 |
| Max Bar Diameter, mm | Ø50 |
| X/Z Aris, mm | 195/850 |
| Speed of Spindle, rpm | 3500 |
| Chuck Diameter, inch | 8 |
| Fore of Spindle | A2-6 |
| Tool Stations, pcs | 8 |
| TailstockTravel, mm | 800 |

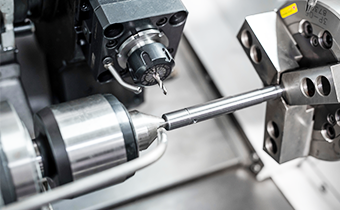

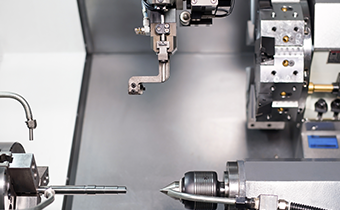

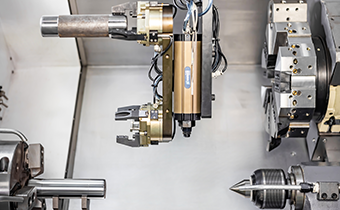

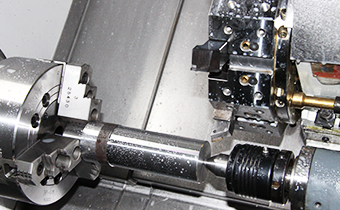

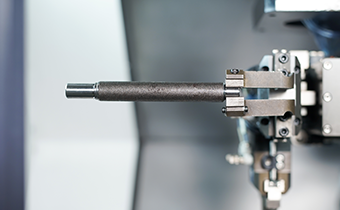

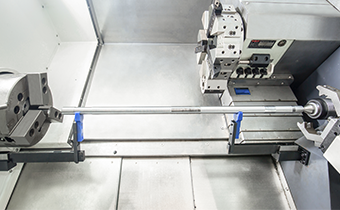

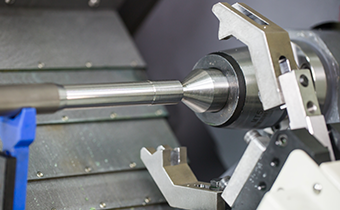

Application Artifact
