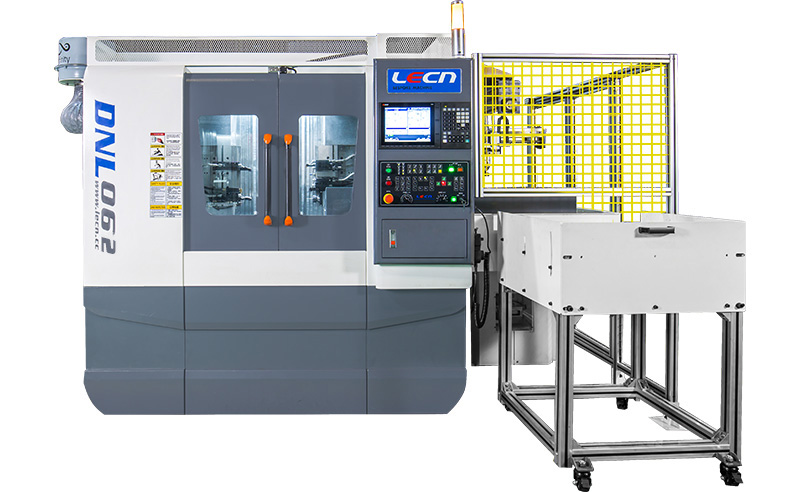

Both ends of the one clamping are processed at the same time or independently, the compact vertical cutter double head CNC lathe with 100-480 mm turning length is suitable for turning, drilling, tapping and boring of precision shaft parts. Compared with traditional CNC lathe, one is equivalent to the machining efficiency of two machines, and the coaxiality can reach μ level. High precision, high efficiency, it can carry with truss or joint robot and automatical line.
Advantage

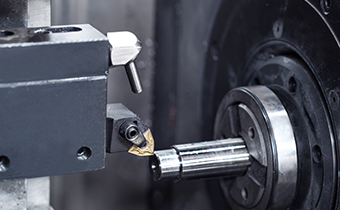

Espond to different parts
Only replace the collet and fixtures.

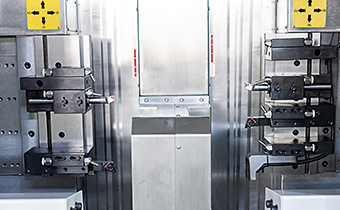

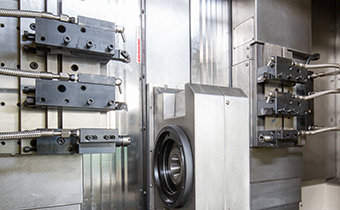

Simultaneous processing
2 times efficiency，μ class coaxiality. Indepant row cutter with telescopic tool, effectivey slove the tool in terference.

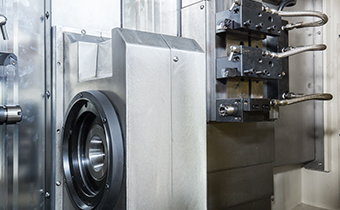

Special central spindle
The special structure central spindle can respond to high speed and cutting rigid.
Dual-channel controller
Easily respond to synchronization processing.

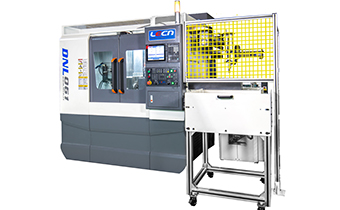

Factory high htability automation
Internal & external truss optional.
Technical Parameters
ITEM | DNL061 | DNL062 |
Max Body Rotate Diameter, mm | Ø200 | Ø200 |
Clamping Diameter Scope, mm | Ø15-Ø50 | Ø15-Ø50 |
Turning Length Scope, mm | 100-300 | 300-480 |
Spindle Clamp Diameter, mm | Ø50 | Ø50 |
X/Z Travel , mm | 280/180 | 280/180 |
X/Z Fast Speed, m/min | 18/24 | 18/24 |
Fool Type | cutter | cutter |
Application Artifact
