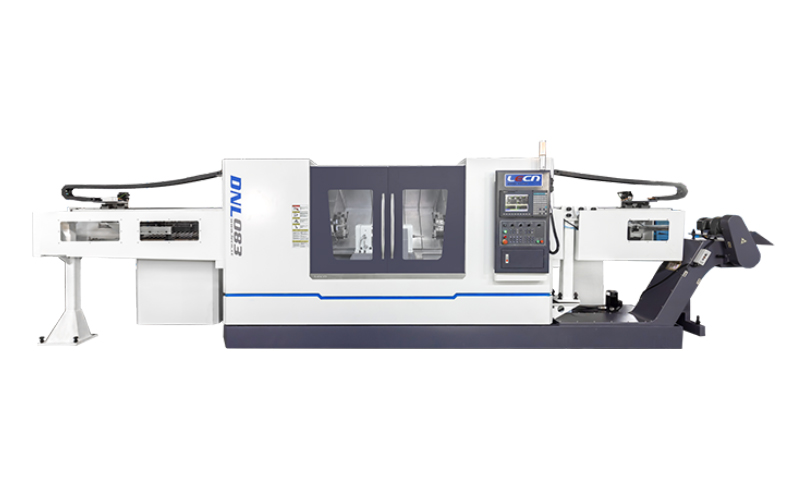

Both ends of the one clamping are processed at the same time or independently, the slanting standard turret double head CNC lathe with 500-1200 mm turning length is suitable for turning, drilling, tapping and boring of precision shaft parts. Compared with traditional CNC lathe, one is equivalent to the machining efficiency of two machines, and the coaxiality can reach μ level. High precision, high efficiency, it can carry with truss or joint robot and automatical line.
Advantage
Espond to different parts
Only replace the collet and fixtures.

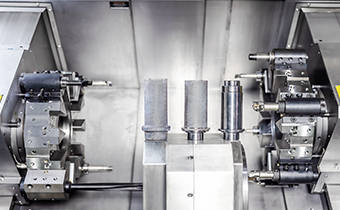

Simultaneous processing
2 times efficiency, μ degree of coaxiality.
single or double spindle of special construction
Distance between two spindles can be adjusted according to the length of workpiece.
Dual-channel controller
Easily respond to synchronization processing.
Technical Parameters
| ITEM | DNL083 | DNL085 |
| Max Body Rotate Diameter, mm | Ø300 | Ø300 |
| Clamping Diameter Scope, mm | Ø20-Ø70 | Ø20-Ø70 |
| Turning Length Scope, mm | 500-750 | 800-1200 |
| Spindle Clamp Diameter, mm | Ø70 | Ø70 |
| X/Z Travel, mm | 160/350 | 160/350 |
| X/Z Fast Speed, m/min | 18/24 | 18/24 |
| Fool Type | Turret | Turret |
| Number of central spindles | 1 | 1 or 2 |
Automobile manufacturing: In the production of automotive parts, such as engine components, transmission system parts, brake system components, etc., high-precision and efficient processing technology is required. The dual-spindle CNC lathe can process both ends of the workpiece at the same time, greatly improving production efficiency and reducing processing time.
Aerospace industry: For the manufacture of aircraft engine parts, landing gear components and other key structural parts, extremely high dimensional accuracy and surface quality are required. This type of machine tool can provide the necessary precision machining capabilities and adapt to the manufacturing needs of parts with various complex shapes.
Medical device manufacturing: Medical equipment and instruments are often manufactured using special materials and have strict requirements on the accuracy of parts. Dual-spindle CNC lathes can accurately process small batches and diversified products to meet the high standards of the medical device industry.
Electronic and electrical engineering: For small components that require fine processing, such as connectors, switches and other electronic components, efficient dual-spindle CNC lathes provide fast and accurate solutions, helping to improve product quality and production efficiency.
Mold manufacturing: In the mold manufacturing process, especially for molds that require high precision and complex shapes, this type of lathe can provide excellent processing results to ensure the high quality and consistency of the final product.
General machinery manufacturing: Whether it is producing pumps, valves or other general machinery parts, the dual-spindle CNC lathe can meet the needs of different customers with its efficient production capacity, flexible operation mode and wide applicability.
In short, the efficient dual-spindle CNC lathe is widely used in various industries that require high precision and efficient production with its excellent processing capacity and flexibility, providing strong support for the development of modern manufacturing industry.
Application Artifact
