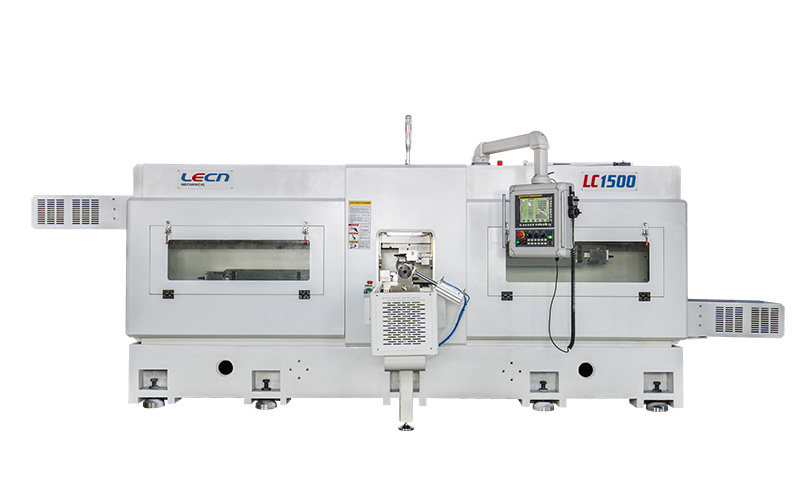

Single or multi section rolling,13 to 60 inch horizontal super strong CNC rolling machine,it is suitable for the precision cold rolling of involute(straight tooth,helical tooth,bevel tooth,missing tooth ,merge tooth)spline,worm,thread,anilox roller,straight grain,oil groove and other precision non chip parts on the large modulus and digital shaft.Super high rigidity,precise,efficient and environmental friendly,it can carry with truss or joint robot and automatical line.
Technical Parameters
| ITEM | LC2000EA |
| Max Module, mm | 2.0 |
| Max Out Diameter, mm | Ø70 |
| Max Tool Width, mm | 150 |
| Max Workpiece Length, mm | 1000 |
| Max Installing Tool Width, mm | 300 |
| The Open Part Size, mm | 177.8 |
| Tool Size, inch | 60 or 36、36 or 24、48 |
| Max Travel, mm | 2100 |
| Drive Way | CNC |
| Special Specifications Can Be Customized | |

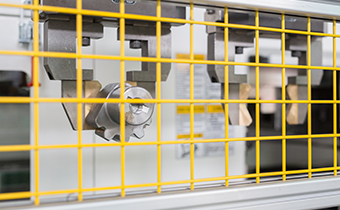

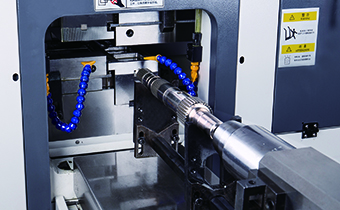

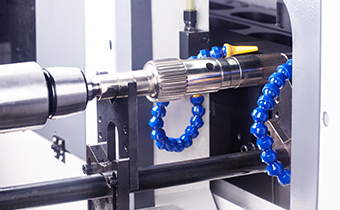

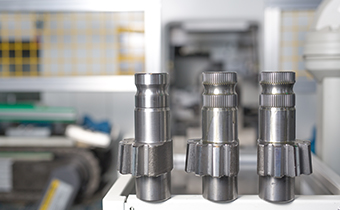

Application Artifact
