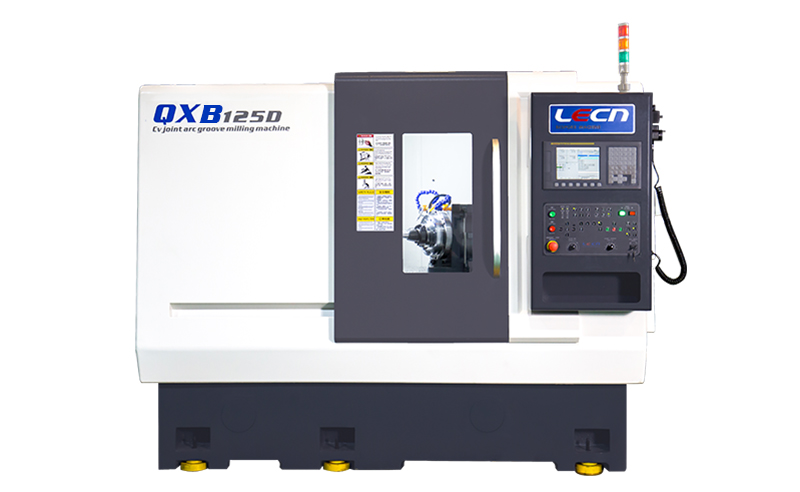

Duplex inner race milling machine with one-time clamping and processing of multiple BJ/UFJ/SX/DOJ grooves, 20-65 mm processing of groove diameter, which is suitable for the rough and fine milling of inner race. High efficiency, it can carry with truss or joint robot and automatical line.
Advantage

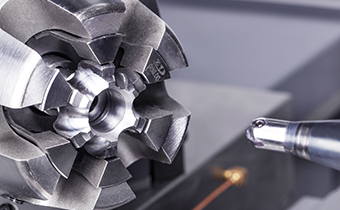

Hydraulic end tooth indexing
High precision.

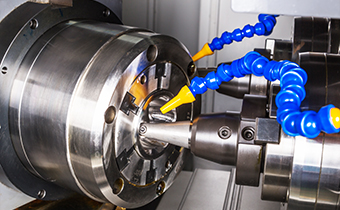

Special hydraulic elastic clamp
Clamping reliable, accuracy stability.

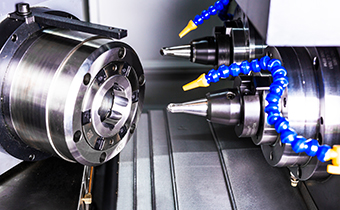

Double position rough milling

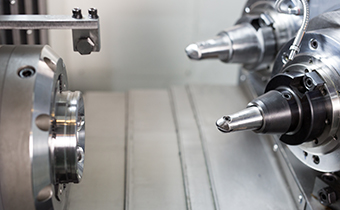

Finish milling ,produce once machining ,high precision
Automation
Factory high stability automation.
Technical Parameters
| ITEM | QXB125D |
| Max Clamping Diameter, mm | Ø35 |
| Max Workpiece Height, mm | 60 |
| Groove Diameter Scope, mm | Ø20-Ø65 |
| Diameterof Steel Ball Scope, mm | Ø12.7-Ø22 |

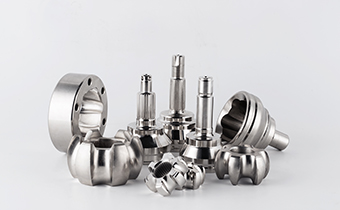

Application Artifact
