Duplex inner race milling machine with one-time clamping and processing of multiple VL/CG grooves, 20-65 mm processing of groove diameter, which is suitable for the rough and fine milling of inner race. High efficiency, it can carry with truss or joint robot and automatical line.
Advantage
Hydraulic end tooth indexing
High precision.
Special hydraulic elastic clamp
Clamping reliable, accuracy stability.
Double position rough milling
Finish milling ,produce once machining ,high precision.
Automation
Factory high stability automation.
Technical Parameters

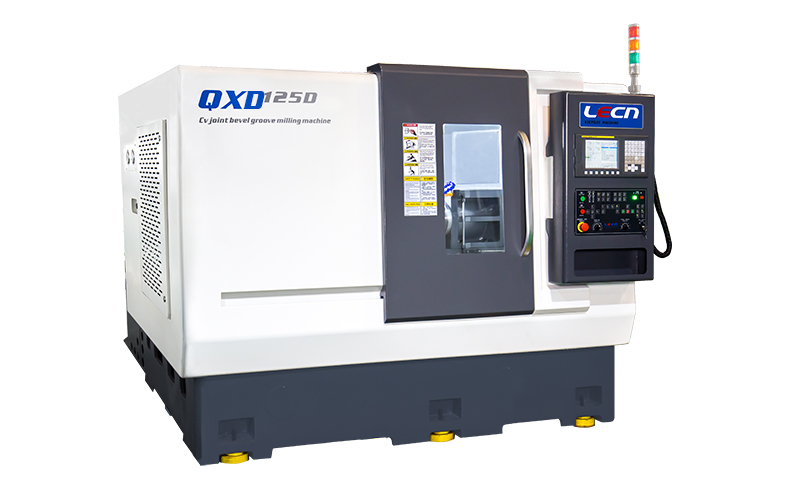

| ITEM | QXD125D |
| Max Clamping Diameter, mm | Ø35 |
| Max Workpiece Length, mm | 60 |
| Groove Diameter Scope, mm | Ø20-Ø65 |
| DiameterOf Steel Ball Scope, mm | Ø12.7-Ø22 |
The Inner Race Milling Machine is a specialized piece of equipment designed for precision milling of the inner races of bearings. Bearings are critical components in various mechanical systems, and the quality of their inner races directly affects the performance and longevity of the entire system. This machine ensures high accuracy, surface finish, and consistency in the milling process, making it indispensable in industries such as automotive, aerospace, and manufacturing.
High Precision
Advanced CNC Technology: Equipped with state-of-the-art Computer Numerical Control (CNC) systems, the Inner Race Milling Machine offers exceptional precision and repeatability. Operators can program specific milling parameters to achieve tight tolerances and consistent results.
High-Accuracy Spindles: The machine features high-accuracy spindles that maintain stability and precision during high-speed milling operations, ensuring that the inner race surfaces meet stringent quality standards.
Versatility
Multiple Tooling Options: The machine supports a variety of cutting tools and tooling configurations, allowing it to handle different types and sizes of inner races. This versatility makes it suitable for a wide range of bearing applications.
Adjustable Workholding: Flexible workholding systems enable the machine to securely hold different bearing sizes and shapes, ensuring stable and accurate milling.
Efficiency
Automated Processes: Automation features such as automatic tool changers and part loaders reduce setup and changeover times, increasing overall productivity.
Multi-Axis Capabilities: Multi-axis machining capabilities allow for complex and intricate milling operations to be performed in a single setup, reducing the need for multiple machines and setups.
User-Friendly Interface
Intuitive Controls: The machine is equipped with a user-friendly interface, including touchscreens and graphical user interfaces (GUIs), which simplify programming and operation. Real-time feedback and diagnostic tools help operators monitor and adjust the milling process as needed.
Ease of Maintenance: Clear documentation and easy access to key components make maintenance and troubleshooting straightforward, reducing downtime and operational costs.
Robust Construction
Heavy-Duty Frame: The machine's robust and rigid frame provides excellent stability and resistance to vibrations, ensuring consistent and high-quality milling results.
Wear-Resistant Components: High-quality, wear-resistant materials are used in critical components, extending the machine's lifespan and reducing maintenance requirements.
Safety Features
Emergency Stop Buttons: Strategically placed emergency stop buttons allow operators to quickly halt the machine in case of an emergency.
Safety Guards and Shields: Protective guards and shields minimize the risk of injury and protect operators from flying debris and cutting fluids.
Integration Capabilities
Compatibility with Automation Systems: The Inner Race Milling Machine can be easily integrated with automated systems such as robotic arms, conveyor belts, and inspection stations, enabling seamless production flow.
Data Connectivity: Built-in data connectivity options allow for real-time monitoring, data logging, and remote diagnostics, facilitating efficient production management and quality control.
