Computer Numerical Control (CNC) turning is a machining process that plays a vital role in modern manufacturing. It is a precise and efficient method for shaping cylindrical components from various materials, including metals, plastics, and more. In this comprehensive guide, we'll delve into the CNC turning process, the operations involved, and the advantages it offers in the world of manufacturing.
CNC turning involves the use of computer-controlled machines to remove material from a workpiece (usually cylindrical) to create a desired shape. Here's a step-by-step breakdown of the CNC turning maching process:
1. Material Selection: The process begins by selecting a suitable material for the workpiece, such as metal rods, plastic bars, or even wood.
2. Workpiece Mounting: The selected material is securely mounted onto the lathe machine's spindle. The spindle rotates the workpiece at a high speed.
3. Tool Selection: An appropriate cutting tool is chosen based on the desired design and material. These tools can include various types of inserts, drills, and end mills.
4. Programming: A computer-aided design (CAD) file or a Computer-Aided Manufacturing (CAM) program is created to define the design and toolpaths for the CNC machine. This program is loaded into the CNC controller.
5. Tool Setup: The selected tool is loaded into the CNC machine's tool turret or tool holder, and its position is precisely calibrated.
6. Material Removal: The CNC machine starts the turning process. The cutting tool moves along the workpiece, removing material to create the desired shape. This movement is controlled by the CNC program, ensuring precision and repeatability.
7. Coolant and Lubrication: During the cutting process, a coolant or lubricant is often used to reduce friction, dissipate heat, and remove chips, resulting in a smoother operation and longer tool life.
8. Measuring and Inspection: Periodic measurements and inspections are conducted to ensure the workpiece's dimensions match the design specifications.
9. Finishing: Depending on the project, secondary operations like threading, knurling, or parting may be performed to achieve the final desired features.
10. Completion: Once the CNC turning process is complete, the finished part is removed from the lathe, and any additional finishing or assembly may be performed as required.

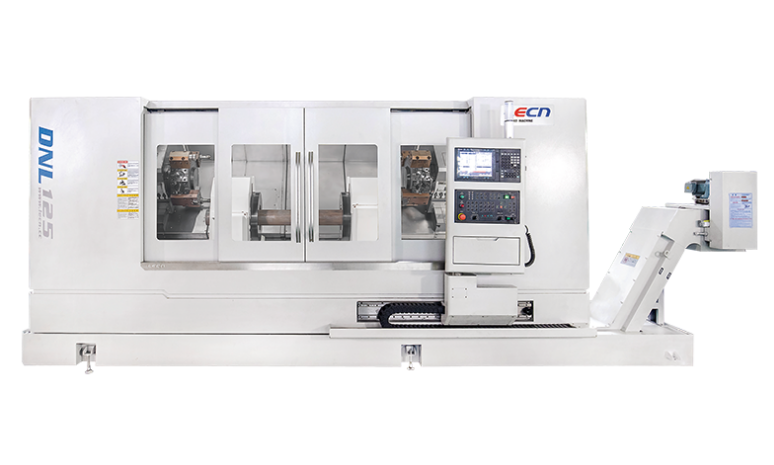

Double Head CNC Lathe DNL121/DNL122/DNL125
CNC turning encompasses several operations, each serving a unique purpose in creating precision parts:
1. Facing: The tool removes material from the end face of the workpiece to achieve a flat and perpendicular surface.
2. Turning: The tool removes material from the outer diameter of the workpiece, creating cylindrical or conical shapes.
3. Boring: This operation enlarges or refines existing holes or internal diameters.
4. Drilling: A drill bit is used to create holes in the workpiece, often with high precision and repeatability.
5. Tapping: Threads are cut into the workpiece's internal or external surfaces using a tapping tool.
6. Knurling: Knurling is a process that creates a textured pattern on the workpiece's surface for improved grip or aesthetics.
7. Parting: The workpiece is cut off from the raw material bar, creating separate components.
8. Threading: Threads are cut onto the external surface of the workpiece, allowing it to be joined with other threaded components.
CNC turning offers numerous advantages that make it a preferred machining method in various industries:
1. High Precision: CNC turning delivers exceptional precision and repeatability, ensuring that parts meet tight tolerances and specifications consistently.
2. Complex Geometries: It can produce intricate shapes and contours that would be challenging or impossible to achieve with manual methods.
3. Efficiency: CNC turning is highly efficient, with the ability to produce parts quickly, reducing lead times and production costs.
4. Consistency: The automated nature of CNC turning eliminates the variability associated with manual machining, resulting in consistent part quality.
5. Versatility: CNC turning can be used for a wide range of materials, including metals, plastics, composites, and more.
6. Reduced Labor: Automation reduces the need for skilled operators, saving labor costs and reducing the risk of errors.
7. Multi-Axis Capability: Some CNC lathes are equipped with multiple axes, allowing for simultaneous machining on various surfaces of the workpiece.
8. Cost-Effective Prototyping: CNC turning is suitable for rapid prototyping, enabling the quick iteration and testing of designs.
9. Efficient Material Use: CNC turning minimizes material waste, as it is highly efficient at removing material only where necessary.
10. Integration with CAD/CAM: The ability to program CNC turning machines using CAD/CAM software streamlines the design-to-production process.
11. Increased Productivity: Continuous operation and minimal downtime make CNC turning machines highly productive, contributing to higher output.
12. Reduced Scrap: The precision of CNC turning reduces the likelihood of producing defective parts, leading to less scrap and material waste.
CNC turning is a versatile and efficient machining process that offers exceptional precision and flexibility in creating cylindrical components. Its automated nature, high precision, and ability to handle a variety of materials make it a valuable tool in industries ranging from aerospace and automotive to medical device manufacturing. By leveraging CNC turning technology, manufacturers can optimize their production processes and deliver high-quality, reliable parts to meet the demands of the modern market.
