Jul. 27, 2024
The cylindrical grinder is a type of grinding machine used to shape the outside of an object. The cylindrical grinder can work on a variety of shapes, however the object must have a central axis of rotation. This includes but is not limited to such shapes as a cylinder, an ellipse, a cam, or a crankshaft.
The main types of cylindrical grinders are plain, universal, automated, and limited-purpose. Grinders may also be categorized by their method of workholding and method of control. Grinding wheels, maintenance, coolant, and grinding variables vary based on the operation.
Grinding machine parts play a crucial role in the precision and efficiency of various machining processes. Among the diverse grinding machine types available, cylinder grinding machines stand out for their specialized function in achieving impeccable surface finishes on cylindrical components. These machines are equipped with sophisticated grinding machine parts that ensure accuracy and consistency, making them indispensable in industries where high precision is required. Whether it's for automotive parts, aerospace components, or general manufacturing, the reliability and performance of cylinder grinding machines are unparalleled.
A cylindrical grinding machine consists of essential parts like the workpiece, grinding wheel, headstock, tailstock, and bed, which collectively enable precise grinding of cylindrical surfaces in various industrial applications.
In a typical cylindrical grinding machine, the workpiece rotates along its axis, supported by two centers. The high-speed rotation of the grinding wheel grinds both centers on the workpiece's axis, resulting in a polished and even surface.
A cylindrical grinder comprises four essential components:
- Headstock and Tailstock
- Grinding Wheel
- Wheel Head
- Table
The combination of these components allows for precise and efficient grinding, ensuring a high-quality finish on the workpiece.
The various types of cylindrical grinding machines include:
1. External Cylindrical Grinder
2. Internal Cylindrical Grinder
3. Universal Cylindrical Grinder
4. Centerless Cylindrical Grinder
External cylindrical grinding is widely employed for precision grinding of rotationally symmetrical workpieces. Various methods of external cylindrical grinding exist, depending on workpiece clamping and feed directions:
- Peripheral-cross grinding between centers (plunge grinding)
- Peripheral-longitudinal grinding between centers (oscillation grinding)
- Centerless-peripheral-cross grinding (centerless plunge grinding)
- Centerless-peripheral-longitudinal grinding (centerless through-feed grinding)
The most common clamping method involves the use of centers. For extended, heavy, or slender workpieces, stable rests are utilized to ensure the desired geometric precision and shapes are achieved.
Internal cylindrical grinding presents unique challenges and primarily involves two methods:
- Peripheral-cross grinding (plunge grinding)
- Peripheral-longitudinal grinding (oscillation grinding)
The complexities stem from the extensive contact areas between the grinding wheel and the workpiece bore. Additionally, managing the vibration behavior of key components, such as the high-frequency spindle, grinding wheel mandrel, and workpiece bore geometry, presents significant control challenges.

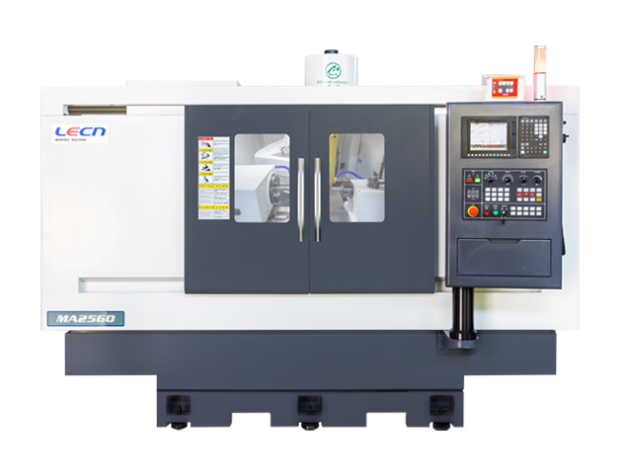

Universal CNC cylindrical grinders are precision grinding machines ideal for producing workpieces with cylindrical or conical shapes. These versatile machines are widely used in diverse industries due to their ability to achieve impeccable geometrical precision and finely finished surfaces. They are essential for crafting engine components, bearings, and tapered parts, meeting the most demanding manufacturing requirements.
Centerless cylindrical grinders are distinct from traditional grinding machines as they neither secure the workpiece at its center nor employ rotation. Instead, they streamline the precision grinding process by eliminating the need for centering and rotation. This innovation offers efficiency and productivity advantages, making centerless grinders preferred for high-precision, high-volume grinding operations. These machines excel in delivering consistent results, especially in intricate components or high-speed production tasks, highlighting their indispensable role in modern manufacturing.
Cylindrical grinding machines offer several key advantages:
- Precision: Achieve tight tolerances and an excellent surface finish.
- Versatility: Suitable for various materials and workpiece shapes.
- Efficiency: High material removal rates.
- Automation: Easily integrated into automated production lines.
- Reduced Heat Generation: Minimize heat-affected zones.
- Improved Productivity: Faster and more accurate than manual methods.
While cylindrical grinding machines offer numerous advantages, they also have some disadvantages:
High Initial Cost: Acquiring and setting up cylindrical grinders can be expensive.
Complex Setup: Setting the machine for specific workpieces can be time-consuming.
Skilled Operators: Skilled personnel are needed to operate and program the machine.
Limited Versatility: Not suitable for all types of machining tasks.
Slow for Large Workpieces: May be less efficient for grinding large parts.
Cylindrical grinding machines are utilized in various applications, including:
- Precision machining of cylindrical and conical workpieces
- Surface finishing and polishing of metal components
- Production of engine parts like crankshafts and camshafts
- Manufacturing precision bearings and shafts
- Grinding tapered parts and threads
- Tool sharpening and regrinding
- Grinding cylindrical molds and dies
- Optimizing performance by grinding hydraulic components
- Creating cylindrical components for aerospace and automotive industries
- Repairing and refurbishing worn-out parts
