Nov. 18, 2024

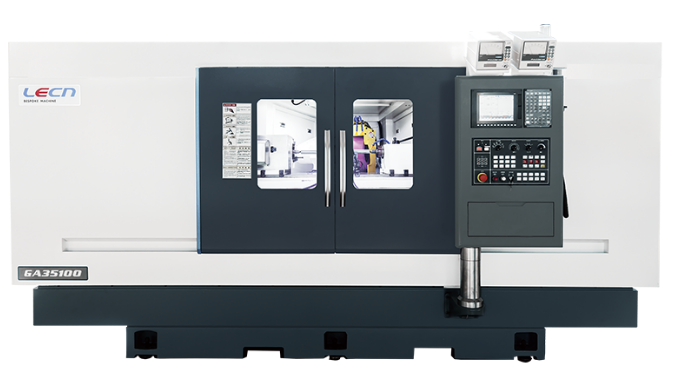

Cylindrical grinders are precision tools used to achieve fine finishes and high accuracy on materials like aluminum, carbide, steel, and other metals. They are particularly designed for machining cylindrical surfaces, rods, and similar workpieces. The workpiece is positioned between two centers and rotates in one direction, while the grinding wheel moves in the opposite direction for effective material removal.
The operation of a cylindrical grinder is similar to that of a lathe, with a key difference: a lathe employs stationary cutting tools, whereas a grinder uses a rotating grinding wheel. Cylindrical grinders are ideal for working on components with a central axis of rotation, such as crankshafts.
During the grinding process, the workpiece rotates rapidly opposite the grinding wheel, while both the grinding wheel and the workpiece's supporting table execute additional movements. The grinding wheel may move vertically or laterally, and the table may move forward and backward. This combination of movements ensures high precision and produces an excellent final surface finish.
This machine is designed for grinding the interior surfaces of a workpiece. It uses a smaller grinding wheel than the width of the material, with a collet or chuck securing the workpiece during the operation.
OD grinding machines focus on the external surface of the workpiece. The workpiece is held between centers, which rotate it as it passes through the grinding wheel, ensuring precise outer diameter shaping.
A type of OD grinding machine, the plunge grinder moves the grinding wheel radially toward the workpiece. This technique is ideal for producing cylindrical shapes or features without traversing the wheel along the workpiece.
Creep feed grinders are designed to remove large amounts of material in a single pass. The grinding wheel cuts deep into the workpiece, significantly reducing production time while maintaining precision.
Unlike other cylindrical grinding machines, centerless grinders do not use centers or a collet to hold the workpiece. Instead, the workpiece is supported between a regulating wheel and a grinding wheel, allowing for continuous and efficient operation.
There are basically two types of cylindrical grinding Process:
External cylindrical grinding is very common grinding processes. This grinding is mainly employed for grinding rotationally symmetrical work pieces. There are different methods of external cylindrical grinding depending upon the type of work piece clamping and feed directions:
1. Chuck Grinding
In this method, the workpiece is held in place using a chuck. The grinding wheel is positioned to grind the external surface of the workpiece. This method is typically used for shorter workpieces where precision is essential.
2. Center Grinding
This method involves mounting the workpiece between two centers, with one end supported by the tailstock and the other by the headstock spindle. This approach is ideal for long workpieces, ensuring stability and accuracy during grinding.
3. Plunge Grinding
In plunge grinding, the grinding wheel moves radially towards the workpiece without longitudinal feed. This method is suited for grinding shoulders, grooves, or other intricate profiles on cylindrical workpieces.
4. Traverse Grinding
In traverse grinding, the grinding wheel moves along the length of the workpiece while maintaining radial contact. This method is used to achieve uniform surface finishes along the entire length of the cylindrical workpiece.
5. Angular Grinding
Angular grinding involves positioning the grinding wheel at an angle to the workpiece axis. It is used for grinding taper surfaces or creating specific geometries on cylindrical parts.
6. Creep-Feed Grinding
This advanced grinding method involves using a very slow feed rate with a deep cut. It is particularly useful for grinding hard materials and achieving intricate profiles in a single pass.
Each of these methods caters to specific machining requirements, ensuring precision and adaptability in external cylindrical grinding processes.
In contrast to external grinding, internal cylindrical grinding focuses on the interior surfaces of a workpiece, such as bores and holes. Internal grinding is commonly used for precision machining of bearing races, bushings, and other components requiring a high degree of internal accuracy.
Methods of Internal Cylindrical Grinding
1. Chuck Internal Grinding
Similar to chuck grinding in external processes, this method involves holding the workpiece in a chuck while the grinding wheel moves radially to grind the internal surface.
2. Centerless Internal Grinding
This method does not require the workpiece to be clamped. Instead, it uses a supporting mechanism to position the workpiece as the grinding wheel performs the internal machining.
3. Profile Internal Grinding
Used for creating intricate profiles within bores or holes, this method employs specially shaped grinding wheels tailored to the desired profile.
4. Planetary Internal Grinding
In this technique, the grinding wheel rotates around the inner surface of the workpiece. This is particularly effective for large, hollow cylindrical parts.
Both external and internal cylindrical grinding processes play a pivotal role in ensuring the dimensional accuracy and surface finish required for high-precision components across various industries. By selecting the appropriate method and equipment, manufacturers can optimize productivity and achieve superior quality.
Cylindrical grinding machines are indispensable tools in modern manufacturing, offering precision and efficiency across diverse applications. Understanding their types, processes, and working principles is essential for leveraging their full potential. With ongoing advancements, these machines continue to evolve, catering to the growing demands of high-quality manufacturing.
