Oct. 15, 2024
A multi-spindle machine, also known as an automatic lathe machine or screw machine, is a type of lathe with more than one working spindle. Each spindle holds its own individual workpiece, with one or more opposing cutting tools to complete various machining operations. These spindles are housed within a revolving drum that indexes each spindle to multiple working positions on the machine. Multi-spindle automatic lathes are commonly used to manufacture high-volume precision parts across various industries.
Typically, these machines feature 5, 6, or 8 spindles, with each spindle corresponding to a specific tooling position. Opposing tools in each position perform the same operation on the workpiece throughout the work cycle, with the drum indexing after each successful operation. Each index of the revolving drum yields a complete workpiece.
The ability to produce multiple workpieces simultaneously gives multi-spindle automatic lathes a significant advantage over single-spindle machines. They deliver precision parts with fast cycle times and high efficiency, making them prevalent in industries such as automotive, aerospace, medical, defense, electronics, and more.
A lathe is a machine primarily used to produce round components. The material, typically in blank or bar stock form, is secured in a collet or multi-jaw chuck, allowing it to spin on its axis while various machining operations are performed, resulting in a finished workpiece. Common lathe operations include single-point turning, single-point threading, drilling, reaming, boring, and more.

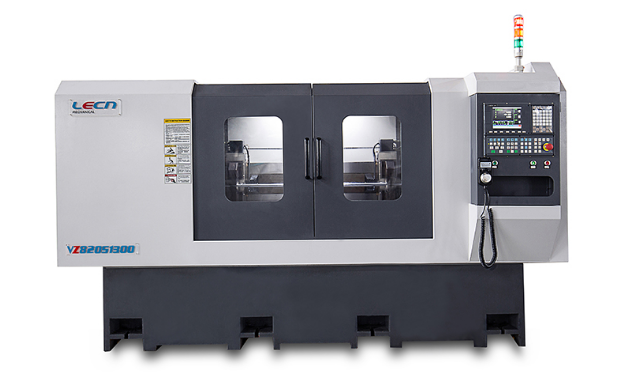

For mass production, multi-spindle automatic lathes are often preferred due to their significantly higher production capabilities, yielding production levels that can be 4 to 6 times greater than those of single-spindle machines. Models like the LECN can perform the same operations as a single-spindle lathe, but in a fraction of the time.
Single-spindle lathes and multi-spindle lathes primarily differ in their operational capabilities and production efficiency.
Single-spindle lathes feature one spindle, allowing them to process a single workpiece at a time. In contrast, multi-spindle automatic lathes have multiple spindles (typically two or more), enabling them to process multiple workpieces or perform several operations on a single workpiece simultaneously.
Single-spindle lathes are suitable for low to medium volume production and are ideal for small batch runs. Multi-spindle automatic lathes, however, are designed for high-volume production, processing multiple precision parts and operations concurrently, resulting in significantly higher throughput and productivity.
Single-spindle lathes offer versatility for a wide range of machining tasks and precision part sizes in smaller volumes. Multi-spindle automatic lathes excel in high-volume, repetitive production with fast cycle times, where efficiency and throughput are critical.
In summary, single-spindle lathes are appropriate for small to medium production runs, while multi-spindle lathes are focused on high-volume precision part production, maximizing productivity and efficiency. The choice between the two depends on factors such as production volume, part complexity, and budget considerations.
