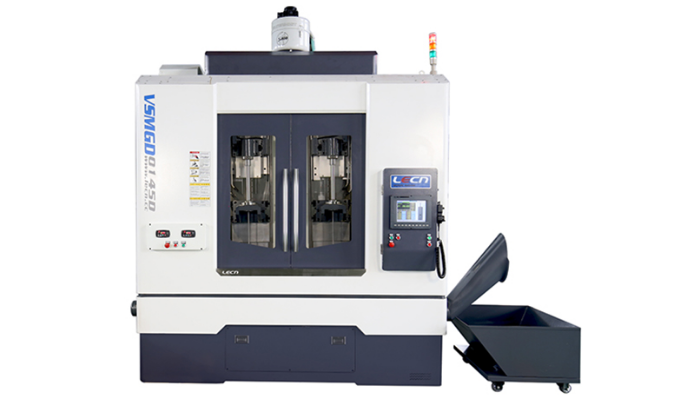

A deep hole drilling machine is a metal-cutting machine tool, designed to produce very deep, precision holes into virtually any metal. Deep hole drilling machines enable the performance of specific tools such as BTA and gundrills, to optimize the deep hole drilling process for manufacturers. Machines are engineered to integrate the technology used by these tools, and optimize all aspects of the process, to drill deep holes with accuracy, reliability, and efficiency.
Deep hole drilling machines are well-suited for a range of deep hole sizes and different production levels. They are particularly essential for holes with a depth-to-diameter ratio of approximately 20:1 or greater. Dedicated deep hole drilling machines offer tooling support, efficient coolant delivery, and valuable process feedback crucial for manufacturers to attain their deep hole drilling objectives. These features streamline the process and prioritize deep hole drilling methods, effectively reducing cycle time, stabilizing tooling, clearing chips, and preventing tool breakage and process failures when compared to CNC machining centers.
Deep hole drilling machines are metal cutting tools capable of creating exceptionally deep and precise holes in various metals. Manufacturers leveraging these machines often optimize the process by utilizing tools like BTA and gun drills. This method holds significant prominence in engineering materials and components employed across diverse industry sectors. In this article, we'll briefly explore the functioning of deep hole drilling machines, their processes, and some of their most prevalent applications.
Manufacturers and designers rely on various deep-hole drilling processes to achieve high-quality final products while managing costs. This section outlines the standard techniques employed in deep hole drilling:
This method of deep-hole drilling utilizes a machine equipped with a slender cutting tool to create highly accurate and straight holes in a workpiece. Gun drills revolutionized drilling practices by offering greater accuracy compared to conventional drills.
A gun drill features a straight flute cutting edge and a single internal coolant hole. This design enables the supply of pressurized coolant through the inner holes while evacuating chips through the single-flute gun drills within the shank. Consequently, material removal occurs concurrently with the drilling process.
Depending on the depth-to-diameter ratio of the hole, standard CNC gun drilling machines might suffice, but specialized tools can achieve higher precision. Dedicated deep-hole drilling systems can attain larger diameters, reaching approximately 400:1 ratios.
Introduced by the Boring and Trepanning Association in the 1940s, BTA drilling involves employing a specialized hollow tool that introduces pressurized coolant into the hole's exterior during operation. The tool also evacuates chips through an internal channel within the drill.
The BTA tooling or single tube system consists of a hollow drill tube attached to a threaded indexable cutter head, suitable for varying hole diameters and depths. BTA tools typically range in diameter from 0.80 to 8.00 inches (20 to 200mm) and can achieve depths of approximately 16.00 inches (400mm).
Ejector drilling, known as a double-tube system, is commonly utilized on machining centers and traditional machine tools. It facilitates drilling depths up to 100 times the diameter (100 x D). Unlike the BTA drilling system, ejector drilling lacks sealing to contain metal-working fluid within the workpiece. Hence, it is best suited for oblique boring or discontinuous parts where sealing the metal-working fluid circuit is impractical.
In this method, metal-working fluid is fed through an annular space between the inner and drill tubes. The fluid exits from the side of the drilling head to cool and lubricate it, aiding chip removal through the internal cavity of the inner drill rod. It's recommended to introduce some fluid into the thinner tube ring nozzle for optimal operation.
Deep hole drilling, despite sophisticated machinery, can be complex, carrying higher risks of errors. Here are some crucial considerations to ensure effective hole drilling:
Selecting the appropriate drill bit is crucial for drilling straight, accurate holes, preventing drill deviation or inaccuracies. Using incompatible drill bits for deep hole drilling can lead to costly mishaps. Manufacturing experts prioritize drill bit compatibility and durability.
Full-face crown drill bits, despite encountering the hardness and rigidity of the material's surface, exhibit improved lifespan. Thus, using the right drill bits ensures precise and accurate hole drilling.
Coolants play a critical role in deep hole drilling by ensuring proper cooling and lubrication during the drilling process. They help maintain moderate temperatures, thereby enhancing tool longevity.
High-pressure coolants efficiently evacuate chips from the cutting zone, preventing surface damage and time-consuming chip removal strokes. Coolants contribute to productivity and improve hole quality in the drilling process.
Manufacturers often employ specialized equipment tailored specifically for deep-hole drilling procedures. These innovative tools are configured to optimize hole drilling for straightness and efficiency.
Technological advancements in drilling equipment enable achieving specific depth-to-diameter ratios, often controlled by computers. Additionally, various deep-hole drilling techniques offer different operational modes, making it crucial to select the most suitable method for your project's requirements.
Deep hole drilling stands as a versatile process that significantly benefits various applications, especially those demanding stringent requirements and facing unique challenges in machining rigid materials with precise tolerances. This operation facilitates achieving the desired depth-to-diameter ratio crucial for hole-drilling projects. Understanding the intricacies of the process is essential to fully harness its advantages in achieving high-quality products.
