Nov. 28, 2024
Deep hole drilling is a specialized machining process designed to create precise, high-depth-to-diameter ratio holes in various materials. This method is commonly employed in industries such as aerospace, automotive, oil and gas, and medical manufacturing, where the creation of deep and straight holes is critical to component functionality. Two primary techniques dominate this field: BTA (Boring and Trepanning Association) drilling and gun drilling. Each approach is uniquely suited to specific applications and materials, offering unmatched accuracy, efficiency, and surface finish.
Deep hole drilling refers to the process of machining holes that typically exceed a depth-to-diameter ratio of 10:1. The defining characteristics of this process are the ability to maintain tight tolerances, deliver exceptional surface finishes, and produce straight holes even at significant depths. These qualities are achieved through specialized tools and machines that handle the challenges posed by extreme depths, such as effective coolant delivery, efficient chip evacuation, and high precision.
Deep hole drilling is integral to several industries, enabling the production of:
- Oil and gas equipment: Components like drill collars, heat exchangers, and exploration tools.
- Automotive parts: Engine blocks, fuel injection systems, and crankshafts.
- Aerospace systems: Hydraulic manifolds and structural components.
- Medical instruments: Surgical devices and implants requiring small-diameter precision holes.
- Industrial tooling: Molds, dies, and other high-performance equipment.
BTA drilling, named after the Boring and Trepanning Association, is ideal for creating large-diameter and deep holes. This method is commonly used for holes ranging from 20mm to over 400mm in diameter, with depths exceeding several meters.
BTA drilling utilizes a single-tube tool system with internal coolant supply and external chip evacuation. The cutting head features multiple cutting edges, ensuring high material removal rates and smooth surface finishes. Coolant is delivered directly to the cutting zone through the tool, while chips are expelled through an annular space between the tool and the workpiece.
- High efficiency: Faster drilling speeds and higher material removal rates compared to other methods.
- Exceptional accuracy: Minimal deviation over extended lengths.
- Durability: Tools are designed for longevity in high-stress applications.
- Versatility: Suitable for tough materials like stainless steel, titanium, and nickel alloys.
BTA drilling is commonly used in:
- Energy industry: Heat exchanger tubes, pressure vessels, and wind turbine components.
- Defense: Gun barrels and missile components.
- Heavy machinery: Hydraulic cylinders and rollers.

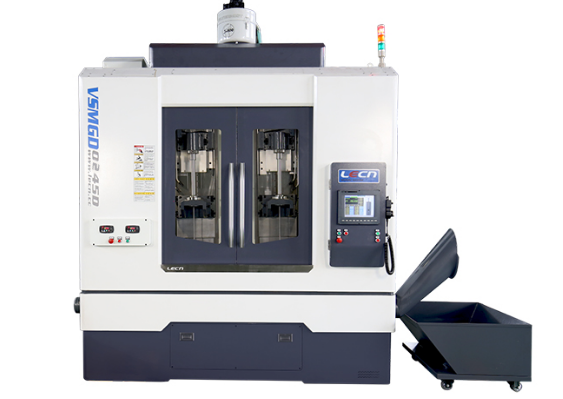

Gun drilling is a highly specialized technique designed for creating small-diameter holes with extreme depth-to-diameter ratios, often exceeding 300:1. It originated in the firearms industry for barrel manufacturing, which is why it carries the term "gun drilling."
The gun drilling process employs a long, slender drill with a single cutting edge and a coolant channel. Coolant, typically high-pressure oil, is delivered through the tool to the cutting edge, flushing out chips through a dedicated groove. The design ensures continuous cooling and lubrication, preventing tool wear and maintaining hole straightness.
- Unmatched precision: Hole straightness and concentricity are maintained even at extreme depths.
- Surface quality: Produces mirror-like finishes, often eliminating the need for secondary machining.
- Small diameters: Efficiently drills holes as small as 1mm in diameter.
- Economical: Minimizes material waste and reduces processing times.
Gun drilling is widely used for:
- Medical devices: Intricate components for surgical tools and implants.
- Firearm manufacturing: Precision-drilled barrels and gun components.
- Automotive: Fuel injectors, valve bodies, and turbocharger components.
- Aerospace: Lightweight structural parts and engine components.
Feature | BTA Drilling | Gun Drilling |
Diameter Range | 20mm - 400mm+ | 1mm - 50mm |
Depth-to-Diameter Ratio | Up to 100:1 | Over 300:1 |
Chip Evacuation | External | Internal |
Coolant Flow | Internal | Internal |
Surface Finish | Excellent | Superior |
Applications | Large industrial components | Small precision parts |
Choosing between BTA and gun drilling depends on factors like:
- Hole size and depth requirements.
- Material type and hardness.
- Production volume.
- Required surface finish and tolerances.
For large-diameter and high-volume industrial applications, BTA drilling is the preferred choice. Conversely, for small, precision-critical components, gun drilling offers unparalleled accuracy.
Deep hole drilling, encompassing both BTA and gun drilling, remains a cornerstone of precision machining, delivering exceptional results across a range of industries. By understanding the nuances of each technique, manufacturers can achieve their desired outcomes with optimal efficiency and quality.
