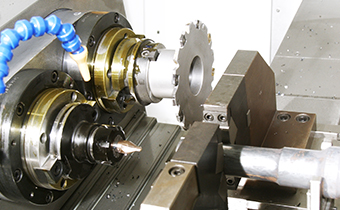

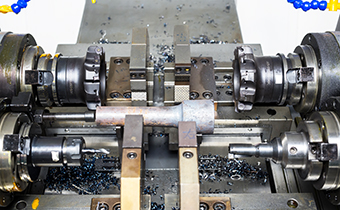

Both ends of the one clamping are processed at the same time, the oblique facing and centering machine with 100-500 mm workpiece length is suitable for milling, chariot, drilling center hole, drilling, tapping, boring, reaming, grooving package of all kinds of slender, irregular and stepped parts. High coaxiality, high efficiency, chip easily, it can carry with truss or joint robot and automatical line.
Advantage

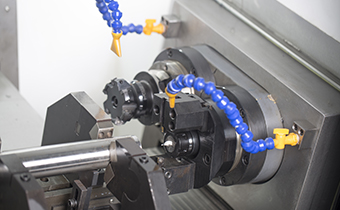

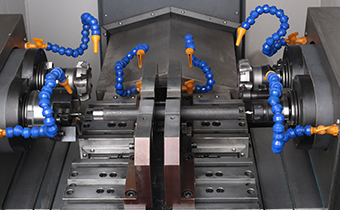

Hydraulic self-centering jig
Clamping reliable, accuracy stability.
CNC spreading tool
CNC tapping
Automation
Factory high stability automation.
Technical Parameters

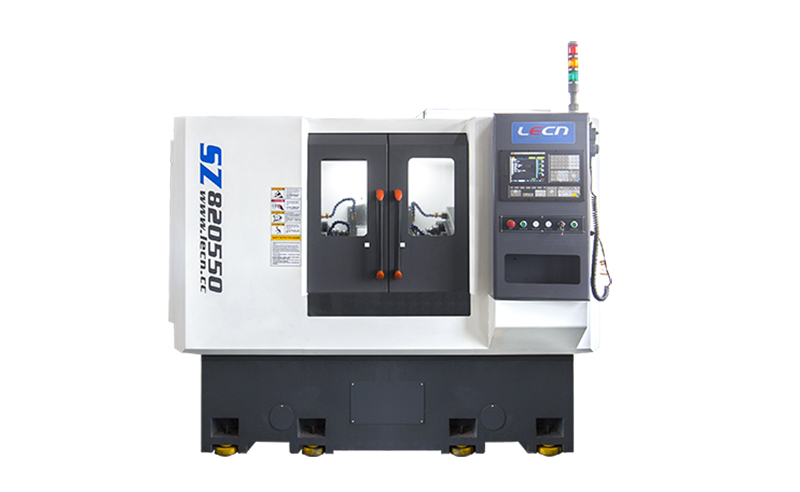

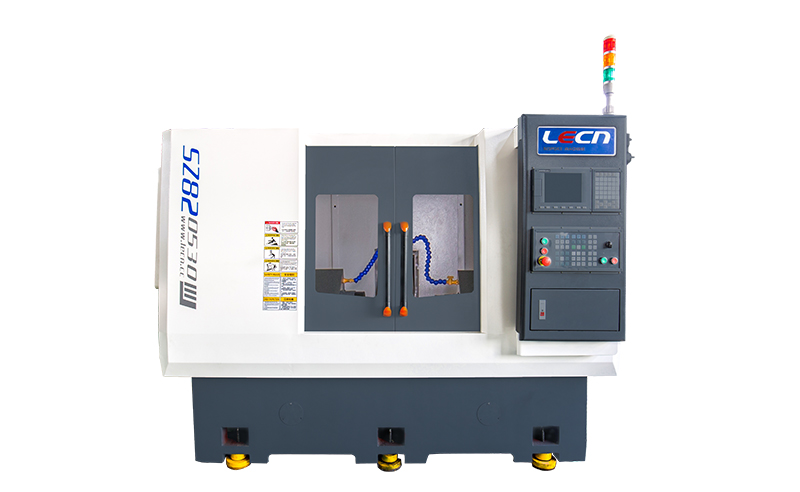

| ITEM | SZ820530 | SZ820550 |
| Clamping Diameter Scope, mm | Ø15-Ø50 | Ø15-Ø50 |
| Workpiece Length Scope, mm | 100-300 | 200-500 |
| Max Center Drilling Clamping Diameter, mm | Ø20 | Ø20 |
| Max Milling Amount(One Side), mm | 4 | 4 |
Application Artifact
