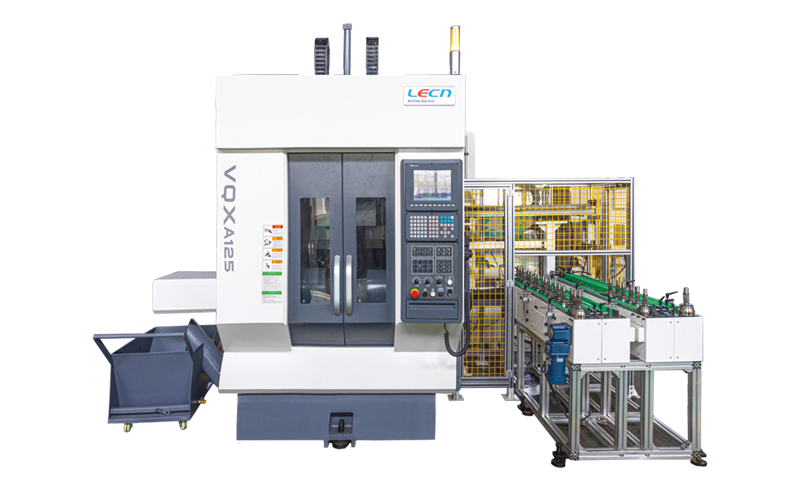

Outer race hard turning and hard milling compound machine with one-time clamping can hard milling BJ/UFJ/SX/DOJ grooves and hard turning sphere of outer race. With hard turning and hard milling instead of grinding, high precision, high efficiency, energy-saving environmental protection, standard truss-type robot, support automatic online.
Technical Parameters
| ITEM | VQXA125 |
| Max Clamping Diameter, mm | Ø110 |
| Max Workpiece Length, mm | 260 |
| Groove Diameter Scope, mm | Ø45-Ø100 |
| Diameterof Steel Ball Scope, mm | Ø12.7-Ø22 |
| Max Workpiece Handle Diameter, mm | Ø38 |

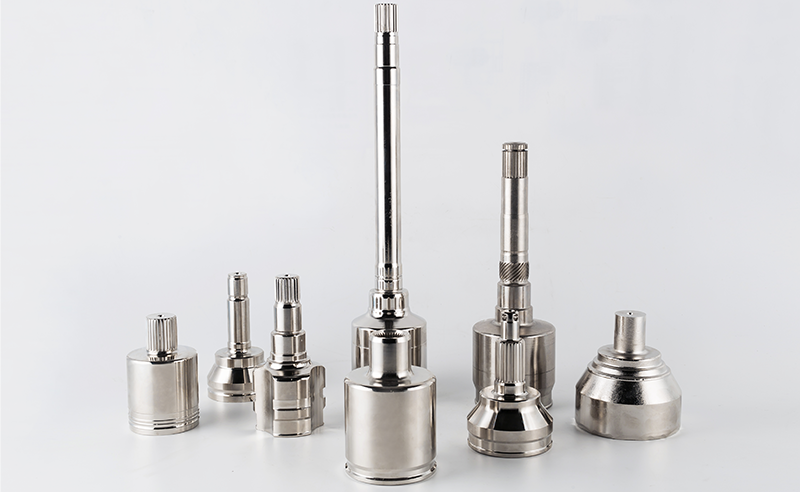

Application Artifact
