Washing machine shaft | Full sequence processing

Washing machine shaft is the key part of the transmission support inside the washing machine, which rotates at high speed and transmits torque.

Custom text

One end of the washing machine shaft is connected with the washing machine drum bracket, the other end is connected with the belt pulley or directly connected with the motor to transfer Torque; the shaft is fixed on the bearing seat by two matched bearings. Its working environment is harsh, to positive and negative rotation, bearing alternating Torque, high rotary accuracy, low noise.

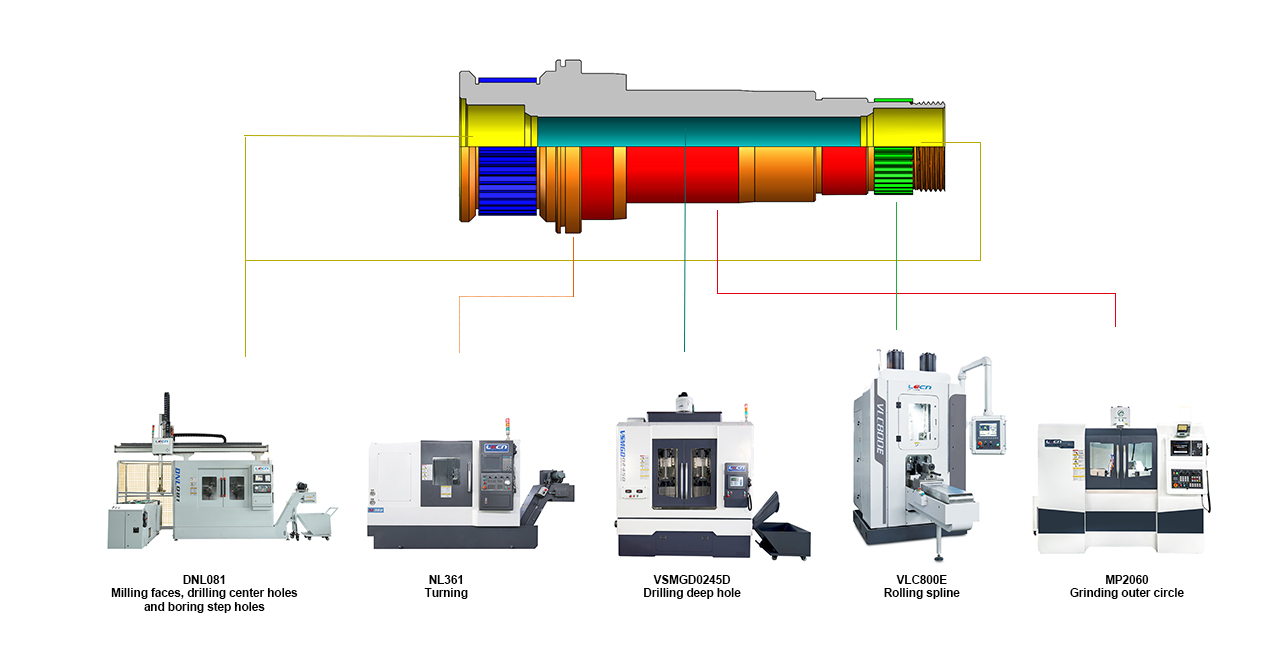

Crafting process

Workpiece case

Workpiece nameWashing machine shaft
Machine typeDNL081NL361

VSMGD0245D

VLC800E

MP2060

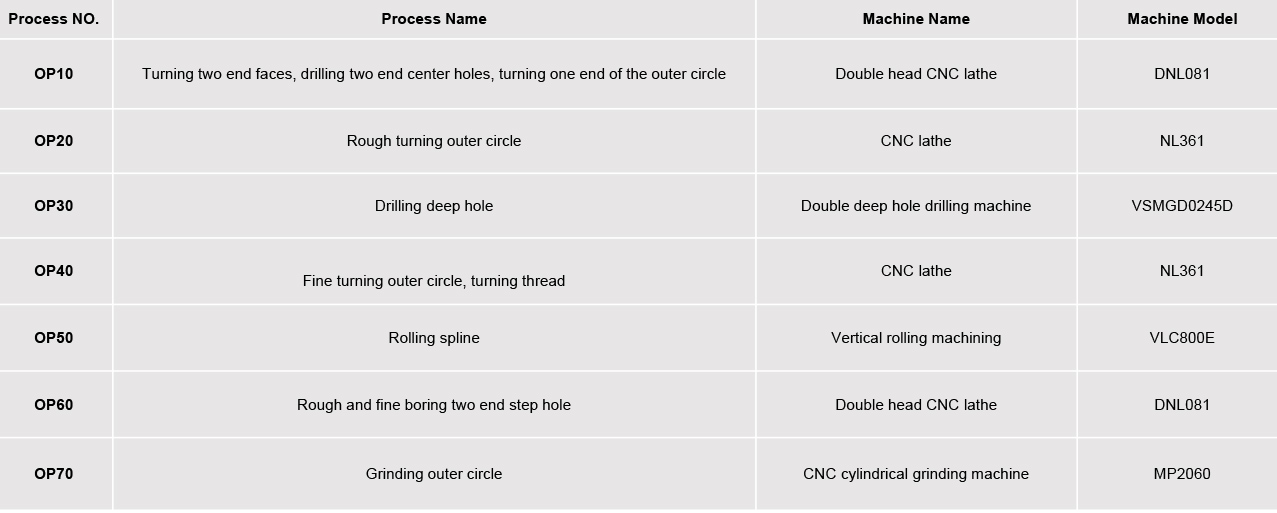

Manufacturing procedureMilling faces, drilling center holes and boring step holes

Turning

Drilling deep holeRolling splineGrinding outer circle
