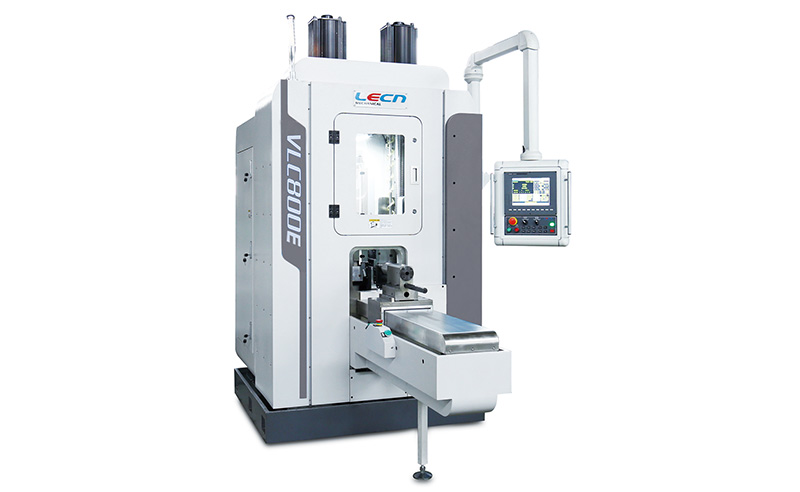

Single or reverse rolling,13 to 24 inch vertical standard CNC rolling machine,it is suitable for the precision cold rolling of involute(straight tooth,helical tooth,bevel tooth,missing tooth ,merge tooth)spline,worm,thread,anilox roller,straight grain,oil groove and other precision non chip parts with modulus no more than 1.3.Compact,precise,efficient and environmental friendly,it can carry with truss or joint robot and automatical line.
Advantage
Rich mold combination
Can save reverse roll forming mold.
Double servo motor full closed-loop drive
Low noise and precise forming process.
Intelligent all-around top servo technology
Effectively solve clamping secure identification.

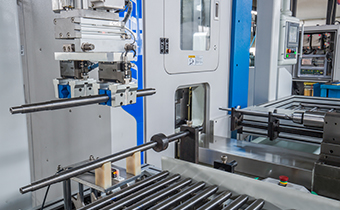

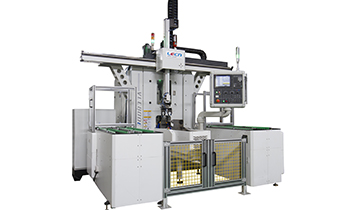

Automation
Factory high stability automation.
Technical Parameters
| ITEM | VLC800E |
| Max Module, mm | 1.3 |
| Max Out Diameter, mm | Ø40 |
| Max Tool Width, mm | 80 |
| Max Workpiece Length, mm | 1000 |
| Max Installing Tool Width, mm | 120 |
| The Open Part Size, mm | 139.7 |
| Tool Size, inch | 24 or16 or 13 |
| Max Travel, mm | 760 |
| Drive Way | CNC |
| Special Specifications Can Be Customized | |

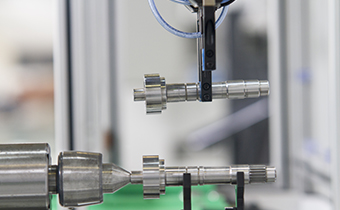

Application Artifact
